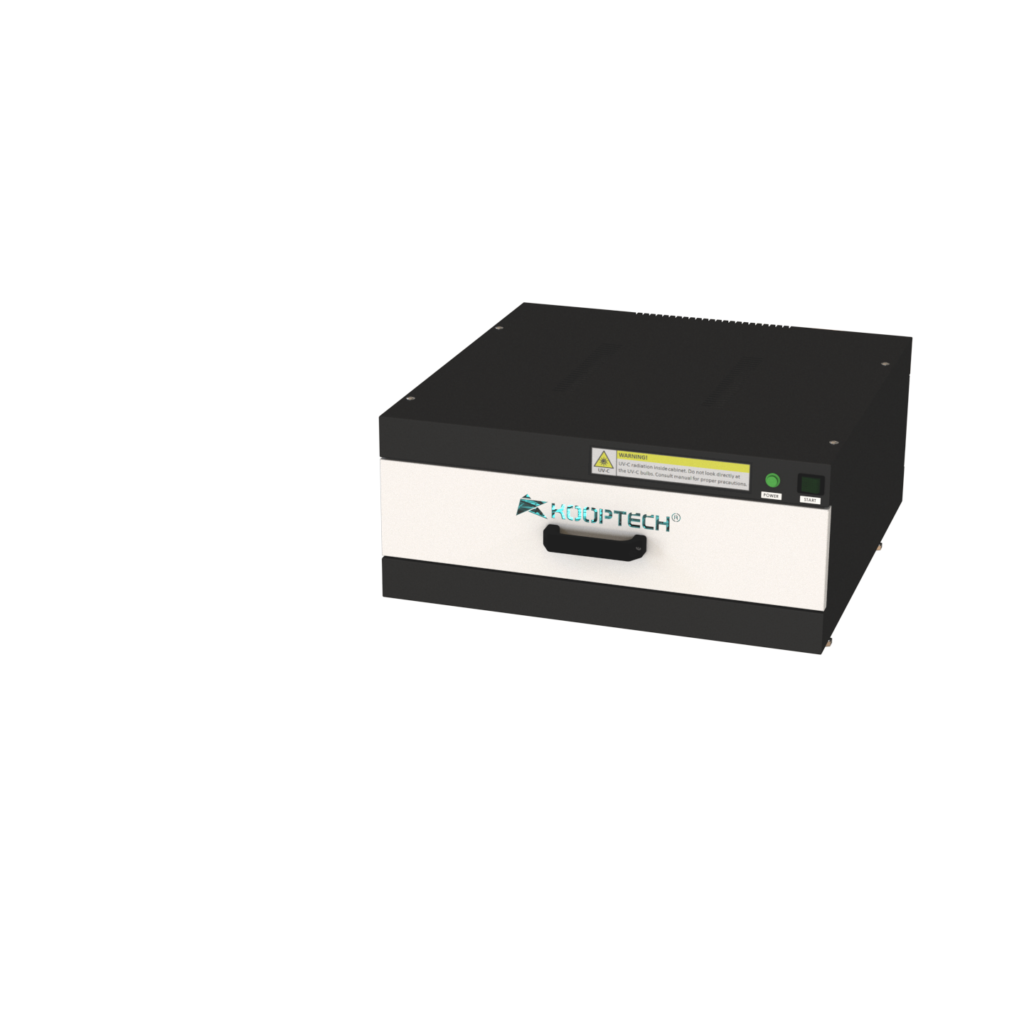

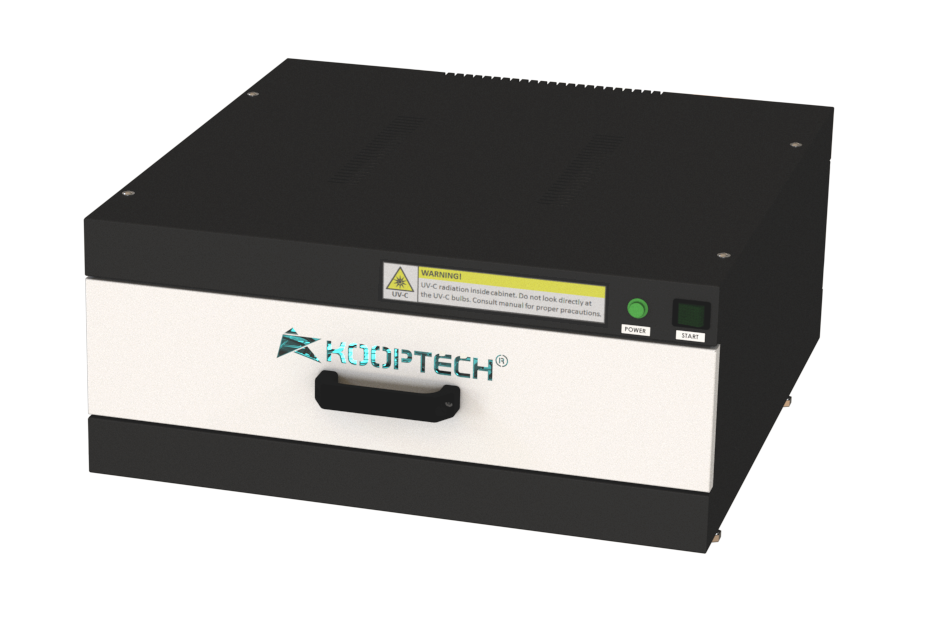

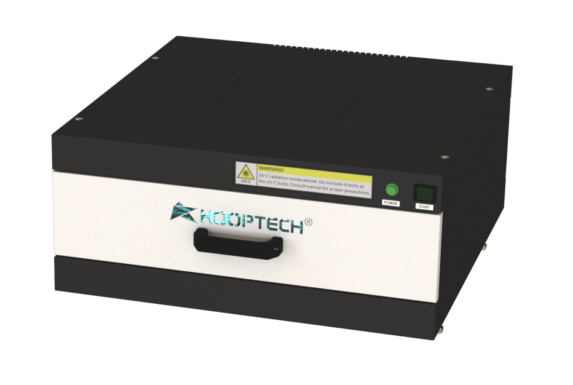

Multifunction box for disinfection UV-C DB60.0

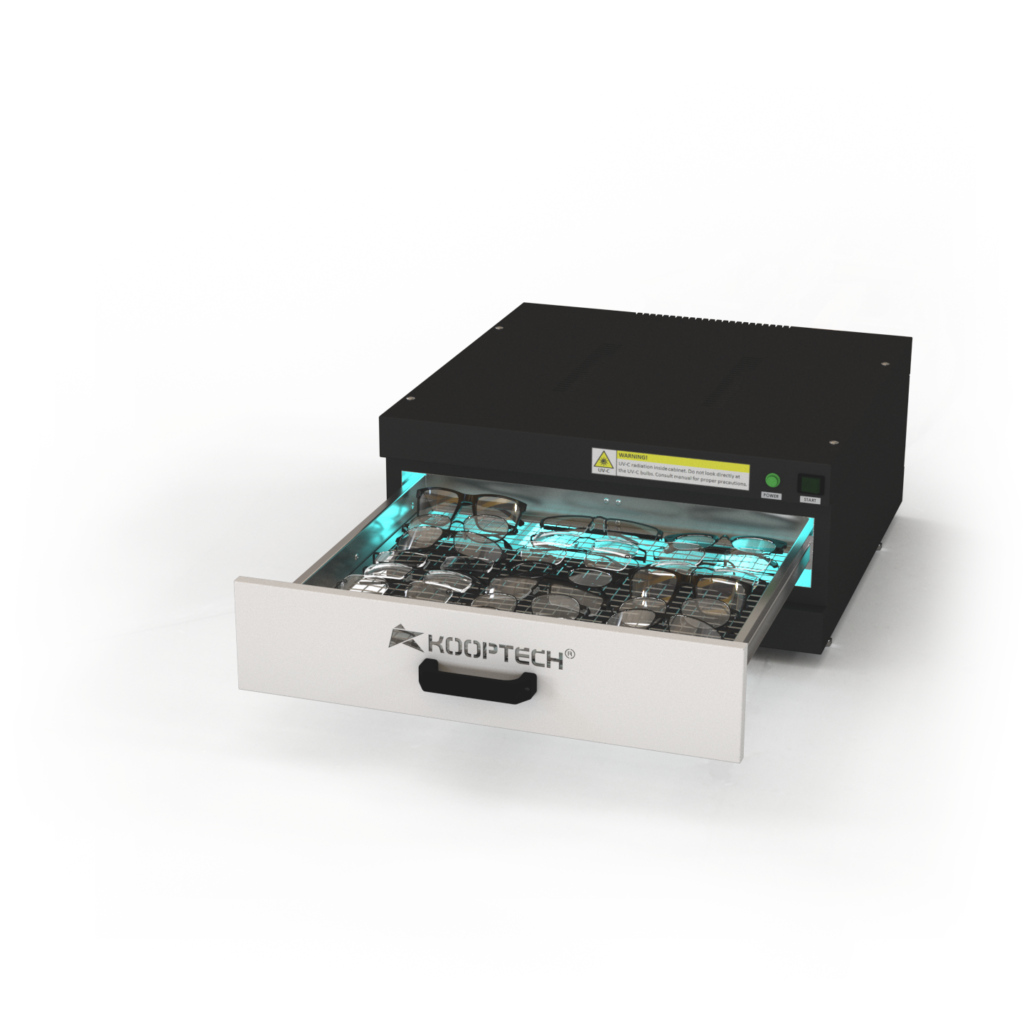

Kooptech® UV-C DB60.0 box disinfection of corrective eyeglasses and sunglasses

DB60.0 was designed to provide safety in eyewear shops. Trying out eyeglasses multiple times by different customers creates a significant risk of disease transmission, especially because they have close contact with the skin and mucus from the nose and mouth. Depending on the eyeglasses size, the efficiency is ~20 pieces per 3-minute disinfection cycle.

Device is stylish and compact. Appropriately exposed within the room makes the customers feel safe and builds trust to the shop.

Due to its efficiency, the DB60.0 UV-C device is dedicated for smaller eyeglass shops and boutiques.
Regardless their primary purpose, the device can be used to disinfect also other everyday objects.

Operating the DB60.0 device does not require any special training and can be used immediately after plugging to the electrical supply.

parameterKooptech® UV-C DB60.0 Box
dimensions (W x H x D)20.7” x 12.8” x 23.6” (525 mm x 325 mm x 600 mm)
weight (without baskets)55.1 lbs. (25.0 kg)
nominal supply voltage1-phase, 110 VAC or 230 VAC (selectable), 50-60 Hz
connection power60 W
power connection cable length4.9 ft (1.5 m)
cycle timeadjustable – from 1 min to 3 min
max ambient temperature95°F (35°C)
max ambient humidity80% (no condensation)
UV-C lamps specification4x 15 W T8 UV-C (254 nm germicidal lamps)
UV-C lamps life9 000 hrs*
minimum UV-C irradiance 100 mm away from the lamps10 W/m2
* With Philips TUV T8 15W UV-C lamps, at depreciation of UV-C output by -10% (based on manufacturer’s data)
